MPO/MTP Patch Panel

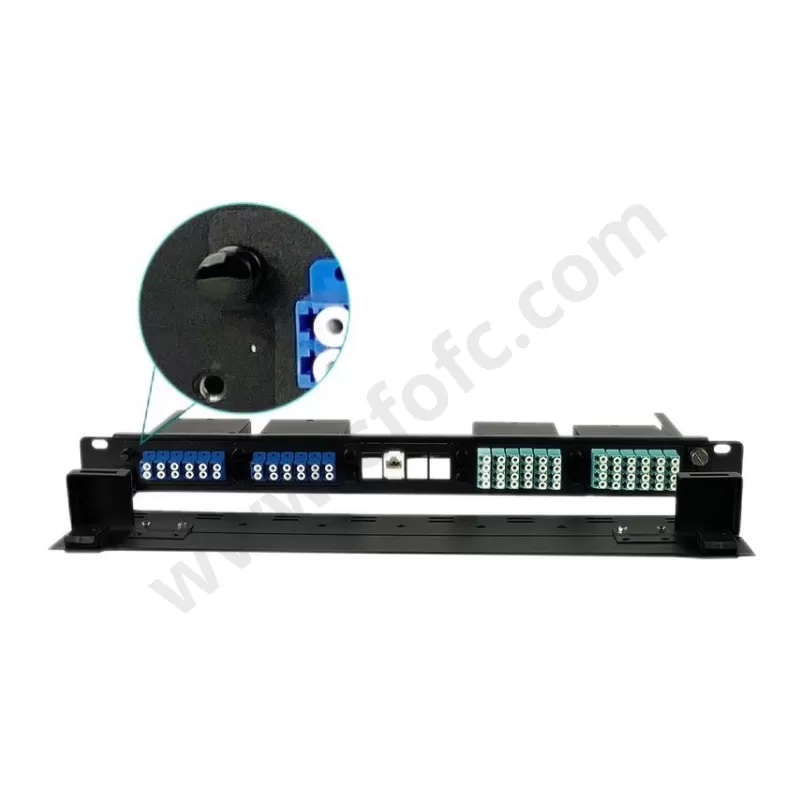

1U 120F High Density 19"rack mount MPO Patch Panel, 5 Cassettes supporting LC and RJ45

1U 120C High Density 19"rack mount MPO Patch Panel, 5 Cassettes, supporting LC and RJ45

CF-1U-120C is an assembled optical fiber patch panel, an ideal solution under the background of the ever-increasing demand for high-capacity cabling in data centers, with simple installation, fast construction, compact design, and precision high, plug and play and other features.

This system can also support application of optoelectronic hybrid with Standard RJ45 keystone jack , achieve the function of network distribution and cover a wider application.


Product Features

High efficient Removable modular design

Each module can accommodate 24 LC or 12 LC fiber connectors and transfer to MTP/MPO interface standards.

Standard 19-inch width rack mounted installation

Diversified module interface and well supporting standard LC , as well as RJ45 network cables

High density: 1U up to 120 port LC connection

High Flexibility of MTP/MPO/LC patching or pigtails splicing

Light weight, easy installation and maintenance

Customized color and silk screen LOGO available


Parameters

Executive standardYD/T788 optical distribution frame
MaterialSPCC (Cold-Roll Steel Sheets)
Working temperature- 5C ~ + 40C
Storage temperature- 25C ~ + 55C
Salt spray test72 hours
Relative humidity≤95% (at +40C)
Atmospheric pressure76- 106kpa
Withstand voltage level≤3000V (DC)



Applications

Fiber channel

Data communication application

Data center infrastructure

Storage area network (SAN)

10G/40G/100G Ethernet standard interface


Order Guide

P/NSize (mm)Max. FibersPack SizeColorAccessories
CF-1U-120C436x 364x 1U 120 LC1pc per inner box2pcs per outer boxBlackCable Ties,
Screw & Nuts
Velcro strips




Related Products

2U 288C Ultra-High Density 19" Rack Mount MPO Wiring System 12 Cassettes 24 LC

2U 288C Ultra-High Density 19" Rack Mount MPO Wiring System 12 Cassettes 24 LC

CF-2U-288 is ultra-high density system has a maximum capacity of twelve 24F modules installable (per 2U), that allows multiple fiber connections to be quickly and efficiently installed and maintained, while supporting regular moves, adds and changes.

1U 96C High Density 19" rack mount MPO wiring System 4 Cassettes 24 LC

1U 96C High Density 19" rack mount MPO wiring System 4 Cassettes 24 LC

CF-1U-96C is an assembled optical fiber patch panel, which can install 4 modules, the maximum capacity can be managed is 576 cores for MPO interface, or 96 cores for LC interface, is an ideal solution for high-capacity cabling in data centers, with simple installation, fast construction, compact design, and precision high, plug and play features.

1U 144C Ultra-high Density 3 Layer Sliding MPO Wiring System Datacenter Cable Management

1U 144C Ultra-high Density 3 Layer Sliding MPO Wiring System Datacenter Cable Management

CF-1U-144 is ultra-high density system has a maximum capacity of twelve 12F modules installable (per 1U), that allows multiple fiber connections to be quickly and efficiently installed and maintained, while supporting regular moves, adds and changes.
