MPO/MTP Fanout Patch Cord

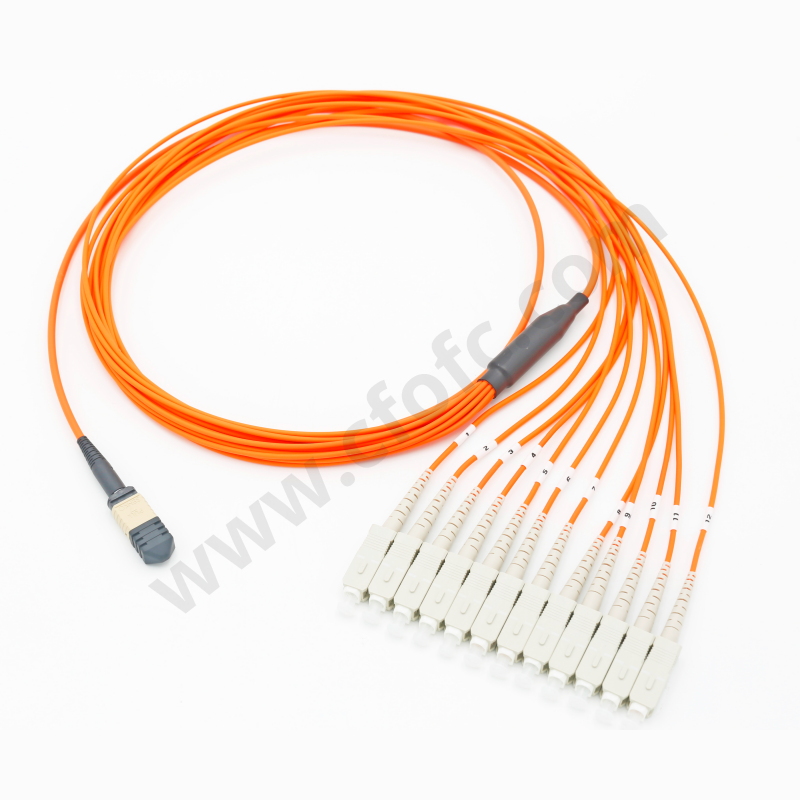

12f MPO MTP® Female to SC UPC Fanout Cable OM2 Multimode Orange

MTP@ MPO Fan-out Patch Cord is a cost-effective product designed to replace time-consuming on-site termination operations. It is suitable for high-density fiber optic cabling environments in data centers with limited space and high cable management requirements. It is used to connect DO (data center), ODF LC/SC/ST/FC panels or various direct connection solutions between SFP modules.

MTP@ MPO Fanout Harness Patch Cord is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.

*MTP is a registered trademark of US Conec Ltd.


Products Details

Feature

USCONEC; SENKO; NISSIN; SUNCALL; Chinese brand

Different MT inserts available (Base-8, Base-12,Base-16, Base-24)

Color-Coded Connector Boots for Easy Identification

Corning ClearCurve® YOFC Fiber with 7.5mm Min. Bend Radius

Available OFNR、OFNP、CPR(B1ca/B2ca/Cca/Dca/Eca)

Available in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and double sheath (4.5mm to 5.5mm)

RoHS2 Certification

Technical Parameters

Connector AMPO MTP® Female (Pinless)Connector BSC
Polish TypeUPC to UPCGlass FiberCorning Clear Curve®
Fiber ModeSM/OM1/OM2/OM3/OM4Wavelength850/1300nm
Fiber Count8-48 FibersPolarityType A / B /C
Cable Outside Diameter(OD)3.0mm-17.3mmCable JacketPlenum(OFNP)
Min.Bend Radius(Optical Fiber)7.5mmMin.Bend Radius (Fiber Cable)20/10D(Dynamic/Static)
Connector Durablity500 timesTensile Strength(Long/ShortTerm)80/240N
Insertion Loss0.35dB Max(0.15dB Typ.)Return Loss≥20dB
Attenuation at 850nm≤2.3dB/kmAttenuation at1300nm≤0.6dB/km
Operating Temperature-10 to 70℃(14 to 158F)Storage Temperature-40 to 85℃
Glass FiberCorning, YOFCOperating Temperature-10 to +70°C

Applications

HPC(High-Performance Computing)

Datacom

DC(Data Center)& Hyperscale DC

LAN and SAN Backbone Network

MTP/MPO-8F/LCis optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics connection and high-density data center applications.

Ordering Information

FIBER CABLE OPTIONS

Applied EnvironmentIndoor/Outdoor
Fiber Cable TypeMicrocore cable  / Loose tube cable  / Distribution cable  / Armored loose tube cable
Outer Diameter(OD)2.0mm / 3.0mm / 4.2mm / 5.0mm / 6.0mm / 8.5mm / 10.0mm / 12.5mm   Customized
Fiber Count(f)8F / 12F / 16F / 24F / 36F / 48F / 72F / 96F / 144F / 288F / Customized
Fiber ModeSM:G652D/ G675A1/ G657A2/ G657B3 MM:OM1/ OM2/ OM3/ OM4/ OM5
Jacket ColorYellow / Lime Green / Aqua / Black / Erika Violet / Customized
Jacket MaterialPVC / LSZH / TPU / PE / HDPE
Fire RatingOFNR   OPNP   B1ca    B2caCca   Dca     Eca_    Fca


CONNECTOR OPTIONS

End AMTP/MPO Base8/ MTP/MPO Base12/ MTP/MPO Base16/ MTP/ MPO Base24 / Customized
End BLC / SC / FC / ST / LC Uniboot  / Customized
MPO ConnectorUNCONEC / SENKO    /    NISSIN     /   SUNCALL    /     Made in China
MPO Connector TypeMale (Pinned)      /       Female (Pinless )
Physical  Contact(EndA)       Flat PC—APC(8°)   /   (EndB)      Flat PC —APC(8°)
Optical  PerformancePremium  /  Elite  /  low loss  /  Standard
Breakout  Length(mm)*300     /     500   /     Customized
PullingNA   /  With mesh   /   With corrugated pipe    /  With corrugated
*Please work with our engineering team for more details


POLARITY

End AType AType BType C
End BType AType BType C
Please work with our engineering team for details


LENGTH WIZARD

Unit(M/Feet)3 / 5 / 10 / 20 / 60 / 80 / 100 / 120 / (M)    Customized
branch length30 / 50 / 80/ 100  (CM)  Customized
*Please work with our engineering team for details
