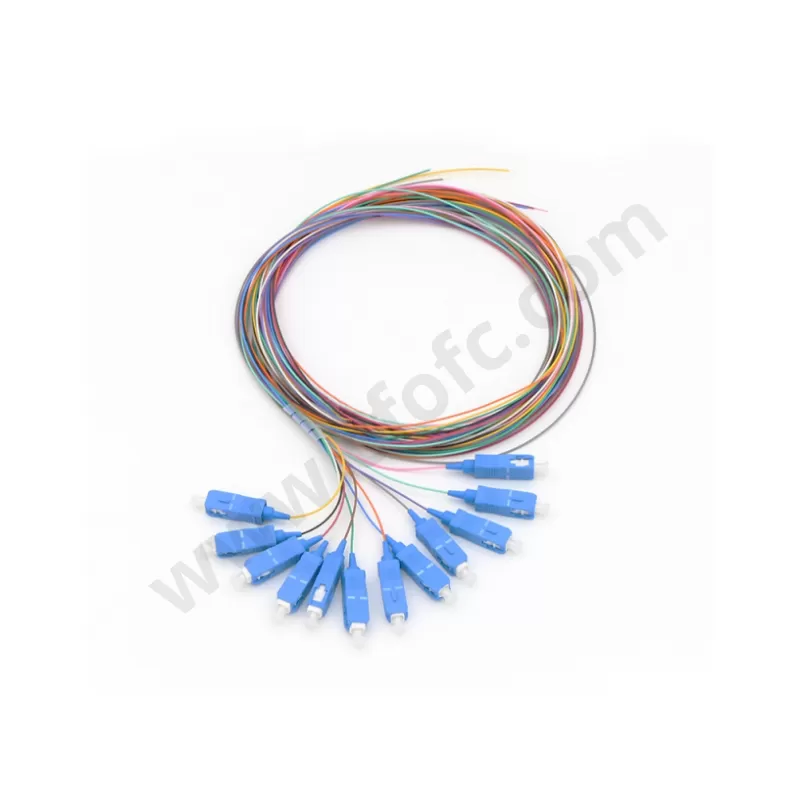

Carrier-Grade SC/UPC 12Core Single Mode Pigtail

Each pigtail is crafted from carrier-grade optical fiber, ensuring high quality and durability. The beam-like design makes installation and connection effortless. Compatible with a wide range of optical devices and equipment. Ideal for branch optical cable jumpers and cluster jumper applications.

Inquire Now

Carrier-grade materials for durability.

Twelve cores for enhanced transmission.

SC/UPC connector for reliable connections.

Single mode for low-loss long-distance.

Compatible with various optical equipment.

Easy installation.

High performance and quality.

Robust for reliable operation.

ltem	SC/(APC ,UPC) (LC,FC,ST,E2000,MU,DIN optional)	Fiber type	G652D / G657A1 / G675A2
Cable count	12	Jacket material	LSZH / PVC
OD(mm)	0.9mm	Cable length	1M,1.5M,2M,3M....
Mode	SM / MM	Cable color	Blue,orange,green,brown,gray,white,red,black,yellow ,purple,pink,aqua
Operating wavelength(nm)	1310,1550	Fiber diameter(um)	9/125
Exchangeability	≤0.2	Vibration	≤0.2
Typical Insertion Loss(dB)	≤0.3	Return Loss(dB)	PC(≥45) UPC(≥50) APC(≥55)

Connecting terminals and units in telecommunications.

Linking servers and switches in data centers.

Transmitting signals in broadcasting.

Connecting sensors and controllers in industrial control.
