Single Mode vs. Multimode Fiber: What's the Difference?

Single Mode vs. Multimode Fiber: What's the Difference?

When it comes to fiber optic cables, two primary types are widely used in various networking applications: single mode fiber (SMF) and multimode fiber (MMF). These two types of fibers differ significantly in terms of design, performance, and application, but understanding their unique characteristics will help you choose the right option for your specific needs.

What is Single Mode Fiber?

Single mode fiber is designed to carry light signals along a single path or mode, allowing it to transmit data over long distances with minimal signal loss. This fiber has a smaller core size, typically around 8 to 10 microns in diameter, which allows only one mode of light to travel through it at any given time.

Single mode fiber is ideal for long-distance communication because it minimizes attenuation and dispersion, which are the two primary factors that degrade signal quality. Due to the small core size, the light travels straight through the fiber with little interference, allowing for high-speed data transmission over distances up to 100 kilometers or more without needing repeaters.

What is Multimode Fiber?

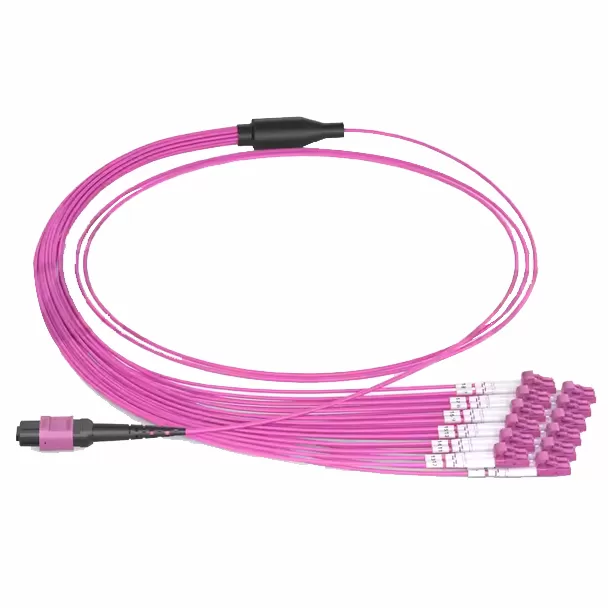

Multimode fiber, as the name suggests, can transmit multiple light signals simultaneously. This fiber has a larger core, typically ranging from 50 to 100 microns in diameter, allowing different modes (or light paths) to travel through the fiber at the same time. As a result, multimode fiber is designed for shorter distances compared to single mode fiber.

While the larger core size allows multiple light signals to travel simultaneously, it also leads to greater modal dispersion, which occurs when different modes of light travel at different speeds. This causes a phenomenon known as pulse spreading, which can lead to signal distortion over long distances. Therefore, multimode fiber is more suitable for shorter, high-speed connections within buildings or local networks, such as in data centers or campuses.

Key Differences Between Single Mode and Multimode Fiber

Here are the main differences between single mode and multimode fiber:

Which Fiber Should You Choose?

The choice between single mode and multimode fiber depends on several factors, including the distance the signal needs to travel, the speed required for data transmission, and the budget available for the installation.

• Single Mode Fiber is the best choice for long-distance communications, such as wide area networks (WANs) or backbone connections that span cities or countries. It's also ideal when high-speed transmission and minimal signal degradation are critical. Although it’s generally more expensive to install, single mode fiber offers a reliable and scalable solution for future-proofing network infrastructure.

• Multimode Fiber is well-suited for short-distance connections within buildings or campuses, where the signal doesn't need to travel far. It’s commonly used in data centers, server farms, and local area networks (LANs) where the transmission distance is limited, and cost efficiency is important. If the network requires high-speed data transfer over a few hundred meters to a couple of kilometers, multimode fiber is the way to go.




Why Choose the Right Fiber?

Choosing the right fiber optic cable ensures that you get the best performance, cost-efficiency, and scalability for your network. By understanding the differences between single mode and multimode fiber, businesses can avoid unnecessary expenses and future-proof their connectivity infrastructure.

In summary, if you're building a network that spans large distances and requires high-speed performance with minimal signal loss, single mode fiber will provide the ideal solution. However, if you're focused on cost-effective, short-range communication within a localized area, multimode fiber will serve you well.

Conclusion

Whether you're looking to connect devices within a single office or establish long-range communication between cities, understanding the fundamental differences between single mode and multimode fiber is crucial. By choosing the right type of fiber, you can ensure that your network performs optimally, meets future demands, and is scalable as your business grows.

Choosing between single mode and multimode fiber isn't just a technical decision — it's a strategic one. Both types have their specific uses, and when used appropriately, each will maximize the efficiency and effectiveness of your communication infrastructure.
