Guide to Designing & Integrating Single Mode Fiber

Guide to Designing & Integrating Single Mode Fiber

Single mode fiber (SMF) is a critical component in modern networking and telecommunications infrastructure, enabling high-speed, long-distance data transmission with minimal signal loss. Whether you're upgrading an existing network or designing a new one, understanding how to design and integrate single mode fiber into your system is essential for achieving optimal performance and scalability.

What is Single Mode Fiber?

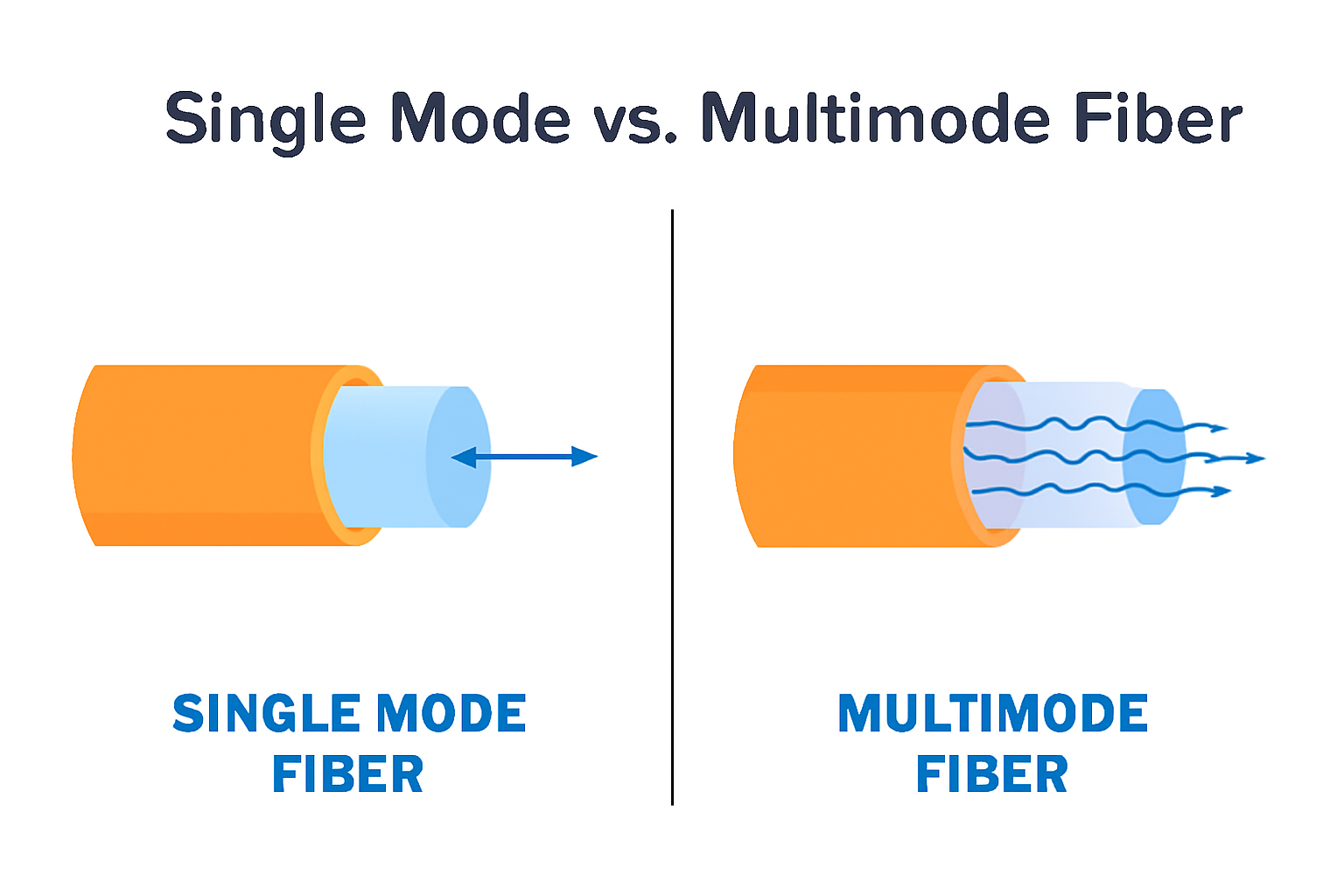

Single mode fiber is a type of optical fiber designed to carry light signals along a single, narrow path. Its core diameter is typically between 8 and 10 microns, much smaller than multimode fiber, allowing light to travel in only one mode. This unique design reduces the chance of signal distortion and enables long-distance communication without significant loss of signal quality.

Because single mode fiber supports the transmission of data over longer distances compared to multimode fiber, it's commonly used in applications where high-speed and long-range data transmission is required, such as in telecommunications backbones, high-performance data centers, and metropolitan area networks.

Why Use Single Mode Fiber?

Single mode fiber offers numerous benefits that make it an ideal choice for high-demand networks:

1. Long-Distance Communication: Unlike multimode fiber, which is limited to shorter distances, single mode fiber can transmit data over 100 kilometers or more without the need for repeaters, making it the go-to choice for long-distance communication.

2. High-Speed Transmission: Single mode fiber supports higher bandwidths and faster transmission speeds, with data transfer rates reaching up to 100 Gbps or more, ensuring rapid data exchange for even the most demanding applications.

3. Low Signal Loss: With minimal attenuation, single mode fiber ensures signal integrity over long distances, making it perfect for wide-area networks (WANs) and backbone networks.

Key Considerations for Designing with Single Mode Fiber

When integrating single mode fiber into your network design, several factors must be considered to ensure optimal performance. Here are key design considerations:

1. Choosing the Right Fiber Type

There are two main types of single mode fiber: OS1 and OS2. OS1 is optimized for indoor use, with a maximum distance of 2 kilometers, while OS2 is designed for outdoor and long-distance use, supporting distances of up to 40 kilometers.

Selecting the appropriate fiber type depends on the distance you need to cover. If you’re designing a long-range network, OS2 will be the better option. If your network is confined to a building or campus, OS1 will suffice.

2. Selecting the Correct Fiber Cable

Once you've chosen the right fiber type, selecting the proper cable is crucial. Single mode fiber cables typically come in two varieties: tight-buffered cables (for short-distance use) and loose-tube cables (for long-distance use). The latter is designed to handle environmental conditions such as temperature changes, moisture, and mechanical stress, making it the preferred choice for outdoor and long-distance applications.

3. Choosing Fiber Optic Connectors and Adapters

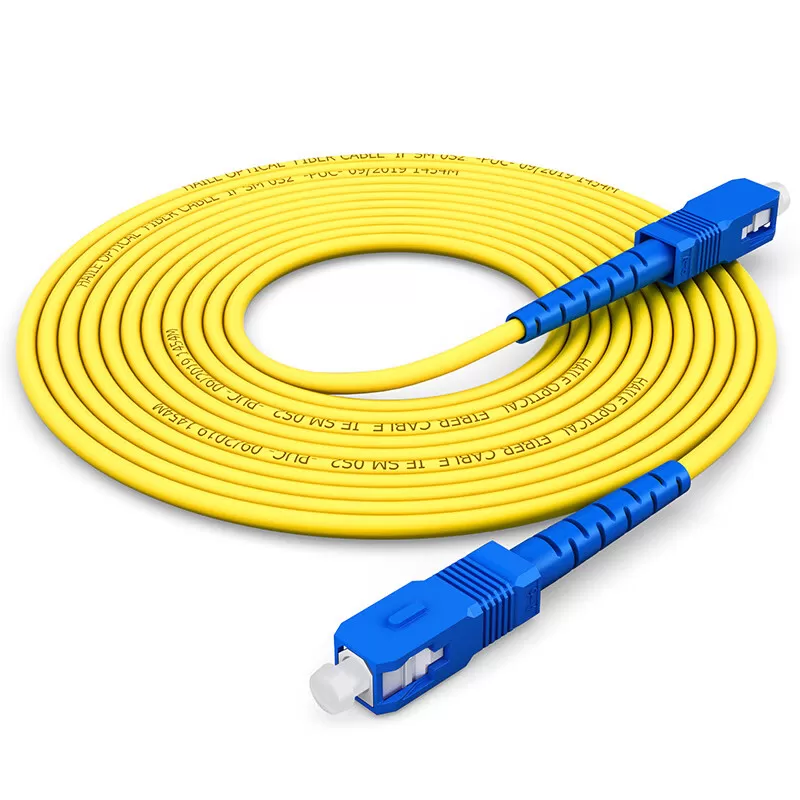

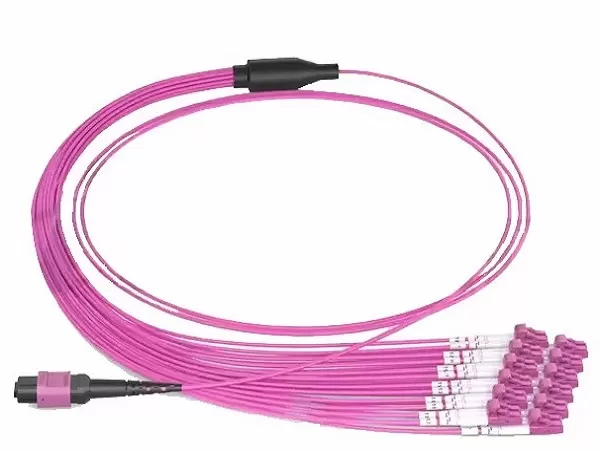

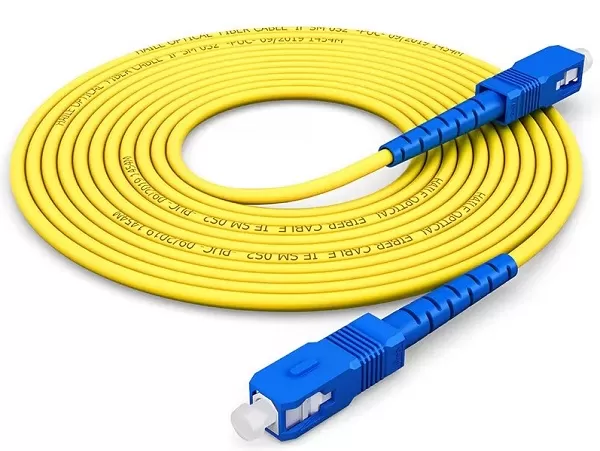

To integrate single mode fiber into your network, you’ll need connectors and adapters. The most commonly used connectors for single mode fiber are the LC, SC, and MTP/MPO connectors. These connectors are designed to ensure a reliable and low-loss connection, particularly important when working with high-speed transmissions.

Additionally, consider the type of adapter required for coupling fibers. For instance, single mode duplex adapters can connect two fibers together, while single mode single adapters are used for single fiber connections.

4. Minimizing Signal Loss with Proper Splicing

Splicing is the process of joining two pieces of fiber optic cables together, and it’s essential to minimize signal loss during this process. Proper splicing is critical to maintaining the high performance of your single mode fiber network. There are two common types of splicing: fusion splicing and mechanical splicing. Fusion splicing is the most precise method, using heat to fuse the fibers together, resulting in minimal signal loss and a stronger bond.

Integrating Single Mode Fiber into Your Network

Integrating single mode fiber into your network design involves more than just selecting the right fiber and connectors. Here’s how you can successfully implement single mode fiber into your network:

1. Plan Your Fiber Layout

Before starting the physical installation of your fiber optic cables, it’s essential to plan your layout. This includes determining the optimal path for your cables, considering factors like existing infrastructure, building layout, and the distance between network devices. Proper planning ensures that you avoid unnecessary bends, sharp turns, or excess slack, which can degrade the signal.

2. Installation of Single Mode Fiber Cables

Once you have your layout and plan in place, the next step is to install the cables. Whether you're installing cables in a data center, an office building, or across a campus, it's essential to handle the cables with care to avoid physical damage. Always follow installation guidelines and avoid exceeding the cable's minimum bend radius to prevent signal loss.

3. Testing and Certification

After installation, testing your fiber network is crucial. This includes checking for optical loss, ensuring that the signal strength meets the required standards for long-distance transmission. Tools such as optical time-domain reflectometers (OTDRs) can be used to test and certify the fiber connections.

Conclusion

Designing and integrating single mode fiber into your network infrastructure is a smart choice when you need high-performance, long-distance communication. With careful planning and the right components, you can ensure that your single mode fiber network meets the speed, bandwidth, and reliability demands of modern business applications.

By understanding the core considerations for fiber selection, installation, and integration, you’ll be equipped to build a robust and scalable network that can support the growing demands of your business for years to come.

Whether you're designing a new network or upgrading an existing one, the efficiency, high bandwidth, and low signal loss of single mode fiber will offer your network a significant boost, laying the foundation for future-proof, fast, and reliable communications.
